Markator FlyMarker® mini

The already fourth generation of the mobile dot peen marker can be described as a new milestone in the history of the battery operated hand-held marking units.

The new FlyMarker^® mini builds on the strengths of the proven previous models and convinces with its light weight and its compact design as well as also due its unique introduction price.

Download brochure

Weights only 2.4 kg
Marking area of 65 x 30 can be used completely
Break-resistant housing out of glass fibre reinforced plastic
Software is self-explanatory and intuitively to operate
High-resolution LC-display
Self-sufficient work due to a powerful Lithium-Ion-Batteries (2 are in standard scope of supply)
Numeric keys are integrated directly in the keyboard
Dirt-resistant and easy to operate keypad
Second handle allows an ergonomic two-hand operation and can be dismounted easily if there is less space
Practical carrying case for the complete standard scope of supply
Marking force can be adjusted individually to the material to be marked and to the needed marking depth
Characters, numbers, test symbols, logos and Data Matrix Codes can be marked
Several hundreds of marking files, fonts and logos can be stored in the internal memory
Integrated USB-interfaces enable a fast data transfer and can also be used for the operation of optional accessoires
Mobile dot peen marking unit marks steel
Simple use of dot peen marker – 100% portable marking unit
Battery operated hand-held marking unit marks round work pieces
Durable and unforgeable dot peen marking

Marking area (x/y): 65 x 30 mm

Available character heights: 1.0 to 29.9 mm

Fonts: Medium spaced lettering similar to DIN 1451 in single dot characters (size 5 x 7 or 9 x 13)

Drive of the marking pin: Electromagnetic

Available characters: Numbers 0 - 9, Capital letters / Small letters A - Z; a - z Various punctuations marks e.g. . ; / , etc.

Interfaces: USB-A, USB-B, Ethernet

Height compensation: up to max. 5 mm (constant marking depth also on uneven surfaces)

Weight: 2.4 kg

Battery capacity: 2.0 Ah, 18V (Lithium Ion)

Marking force: 30 possible force settings (constant impact performance through the compete battery runtime)

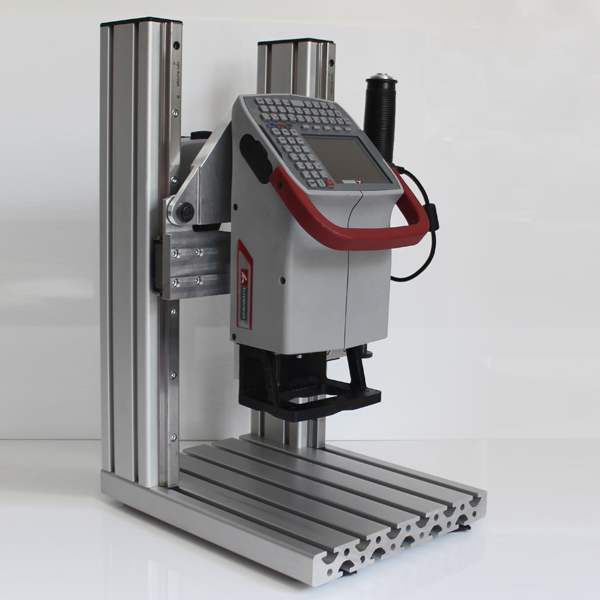

FlyMarker® mini with column frame

For a flexible use of the FlyMarker mini, the hand-held marking system is optional available with a column frame.

The mobile marking unit can easily be mounted on the column and with this small work pieces and identification tags can be marked on a bench working place, while big and unmovable work pieces can be marked directly on-site using the hand-held marking unit.

- Smooth running linear guides for an easy height adjustment of the column frame

- Display can be turned by a single keystroke and is oriented to the operator in every working position
